CO2 - O2 Incubators
CO2/O2 incubators provide uniform temperatures and highly stable CO2 and O2 environments necessary for the maintenance of cell samples, whether for the study of cell cultures, tissues, microbiology, food analysis, among other areas.
CO2/O2 incubators provide uniform temperatures and highly stable CO2 and O2 environments necessary for the maintenance of cell samples, whether for the study of cell cultures, tissues, microbiology, food analysis, among other areas.

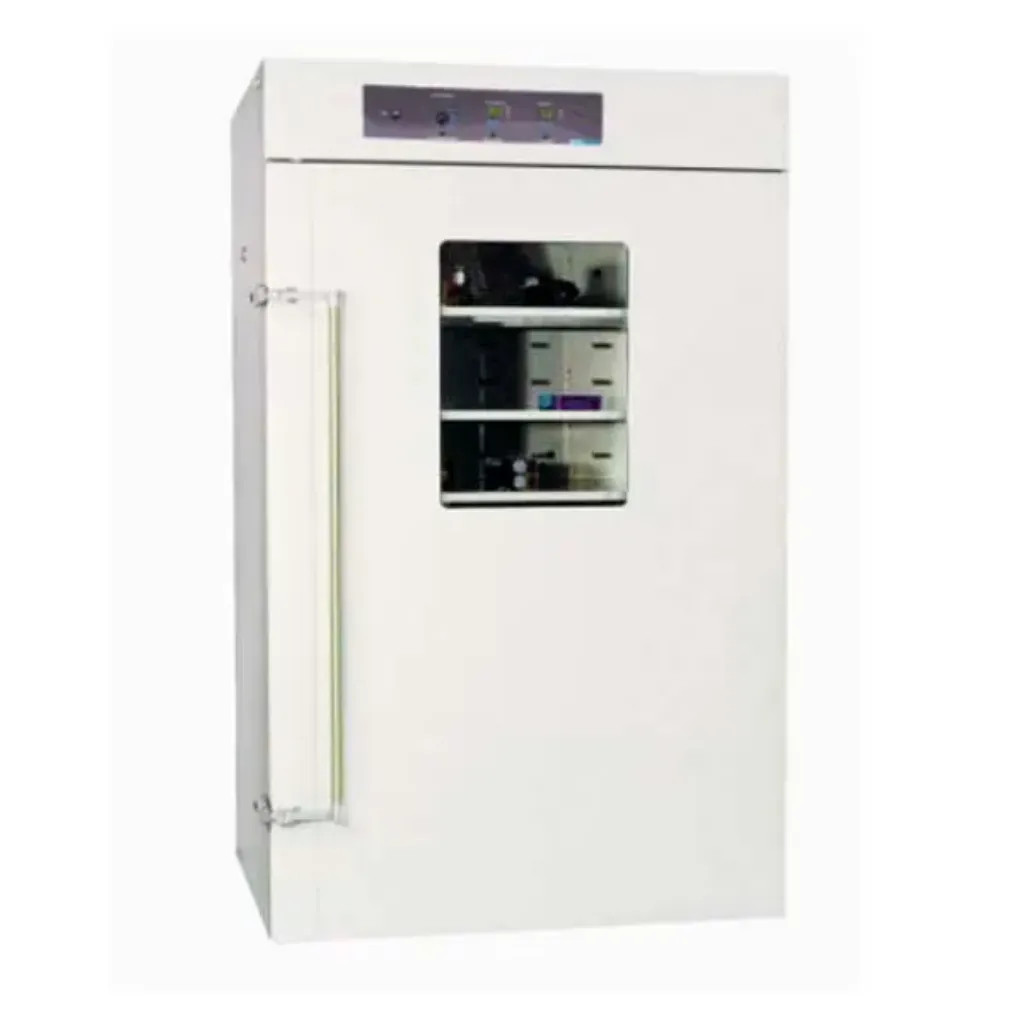

1640L CO2 INCUBATOR
Incubator with stainless steel interior and sealed glass window allows samples to be viewed. Protection against microbiological contamination is ensured with condensation inhibition through analysis of data logs and automatic CO2 drift alarm.
IR (infrared) CO2 sensor that guarantees an immediate response and rapid recovery of the CO2 level when opening and closing the door. Advanced temperature control system and digital temperature, CO2 and lights control. Forced airflow circulation so that the temperature and CO2 level reach all bottles or other growing units that are used. Four internal electrical connections for connecting Roller-type equipment or others.
Specifications:
- Includes 6 shelves (max. 30);
- Room temperature control +8°C to 60°C;
- Temperature uniformity from ± 0.5°C to 37°C;
- CO2 control up to 20%;
- CO2 uniformity from ± 0.1°C to 5°C;
- Infrared CO2 sensor, recovery time at 5% CO2 less than 5 min;
- Maximum capacity of 1640L, optional; 890L and 1118L models available;
- Dimensions (WxDxH): External 129.5 x 113.7 x 205.7 cm, internal 109.2 x 87.6 x 171.5 cm.
AUTOMATIC TRI-GAS CO2 /O2 INCUBATOR (151 L)
The HF100 Tri-gas Incubator provides precise control of temperature, CO2, O2 as well as high humidity without the occurrence of condensation. With stainless steel inner chamber, three inner glass doors to minimize recovery time and risk of contamination with safety thermostat and inner glass door. CO2 inlet HEPA filter, removing impurities and contaminants before circulating in the chamber and humid heat disinfection system at 90°C. High humidity levels without the occurrence of condensation, avoiding contamination in samples. Constant humidity guaranteed by the water tank, alarm for when it needs to be refilled, standard humidity sensor ensures high humidity levels are maintained to prevent crop dehydration. Microprocessor control of temperature, CO2, O2 and relative humidity. Presence of an auto-start function, which considerably simplifies the operation of the equipment, including automatic start-up of the incubator and calibration of the measurement system.
Specifications:
- Includes 3 shelves (max. 10);
- Temperature control from ambient temperature +3°C to 55°C, with accuracy of <± 0.1°C;
- CO2 control up to 20%, with accuracy of ± 0.1%;
- Infrared CO2 sensor or thermal conductivity, optional;
- O2 control from 1 to 25%, from 3 to 85% CO2, with accuracy of ± 0.2% CO2;
Zirconium oxide O2 sensor;
- Relative humidity of ≥ 95%;
- Maximum capacity of 151L;
- Dimensions (WxDxH): external 63.7 x 776.8 x 86.9 cm, internal 47 x 53 x 60.7 cm.
AUTOMATIC CO2 INCUBATOR
CO2 incubator with inner chamber in stainless steel with rounded corners, outer door with safety thermostat and inner glass door. CO2 inlet HEPA filter, removing impurities and contaminants before circulating in the chamber and humid heat disinfection system at 90ºC. High humidity levels without the occurrence of condensation, avoiding contamination in samples. The distilled water reservoir system (3 L) maintains stable air humidity. Temperature and CO2 microprocessor control and auto-start function, which considerably simplifies equipment operation, including automatic incubator start-up and measurement system calibration.
Specifications:
- Includes 3 shelves (max. 10);
- Room temperature control +5°C to 50°C;
- Temperature uniformity at ± 0.2°C;
- Temperature stability at ± 0.1°C;
- CO2 control up to 20%;
- CO2 stability at ± 0.1%;
- Relative humidity of ≥ 95%;
- Thermal conductivity CO2 sensor;
- Maximum capacity of 240L, optional; 151L model available;
- Dimensions (WxDxH): external 78 x 82 x 94.4 cm, internal 60.7x 58.3 x 67 cm.
CO2 INCUBATOR
Compact CO2 incubator with stainless steel inner chamber with rounded corners to minimize contamination and facilitate cleaning. Equipped with an air recirculation system with UV for decontamination cycles, and with a built-in infrared CO2 sensor, which allows precise control of the CO2 concentration and measurements that are not sensitive to changes in temperature and humidity. Black box system that records temperature, humidity and CO2 levels. Error and alarm tracking system.
Specifications:
- Includes 3 shelves (max. 6);
- Temperature control from 25°C to 60°C;
- Temperature uniformity from ± 0.3°C to 37°C;
- Temperature stability at ± 0.1°C;
- CO2 control up to 20%;
- Infrared CO2 sensor;
- Maximum capacity of 46L;
- Dimensions (LxDxH): external 480 x 560 x 550 cm, internal 350 x 310 x 385 cm.
