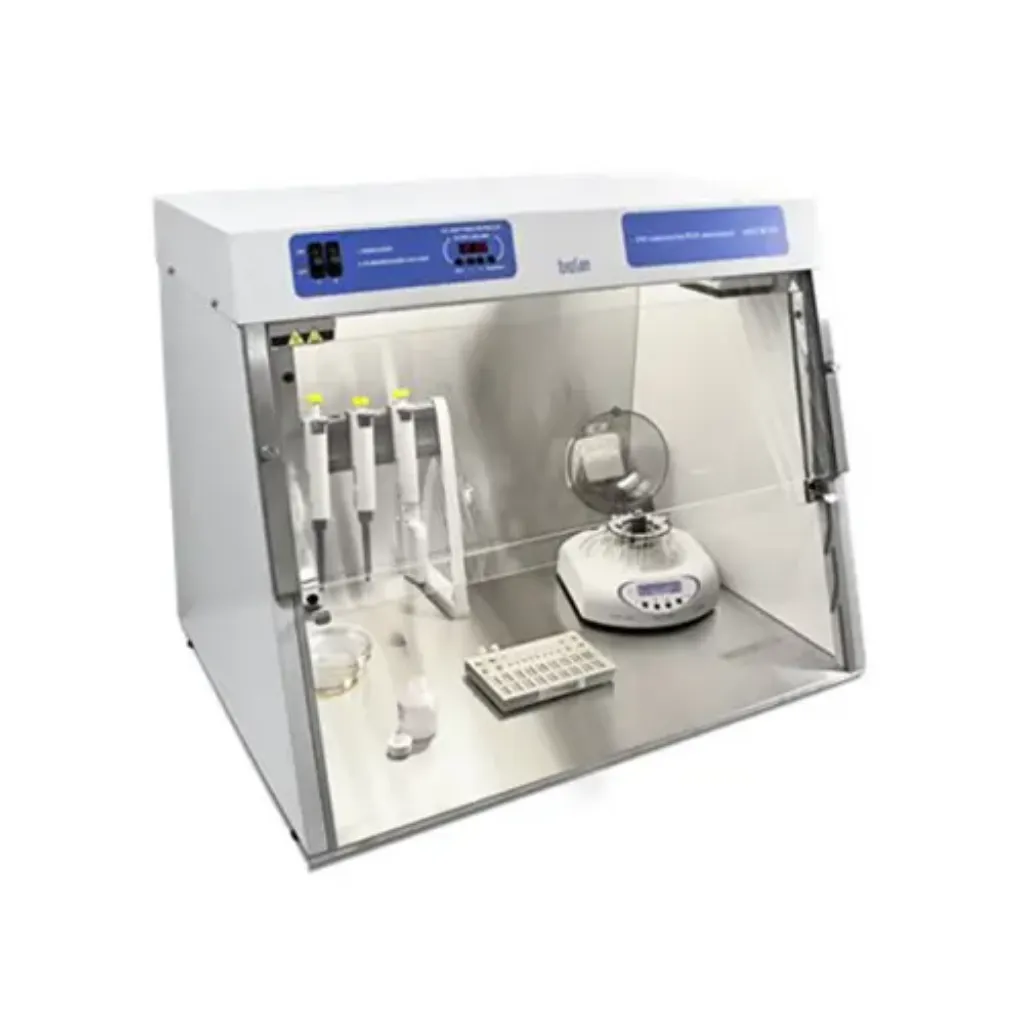

PCR UV chambers

Ozone-free, high-density UV decontamination PCR chambers with long-life lamps and UV lamps that automatically turn off when the protection panel is opened. UV irradiation disinfects the work area by inactivating DNA/RNA fragments during a 15 to 30 minute exposure. The cameras have low noise and low power consumption.
SKU: BIOUVT-B-AR

Register or Log In in order to request a quote

Register Login

Products specifications
Sizes
Ozone-free, high-density UV decontamination PCR chambers with long-life lamps and UV lamps automatically turn off when the protection panel is opened. UV irradiation disinfects the work area by inactivating DNA/RNA fragments during a 15 to 30-minute exposure. The cameras have low noise and low power consumption.

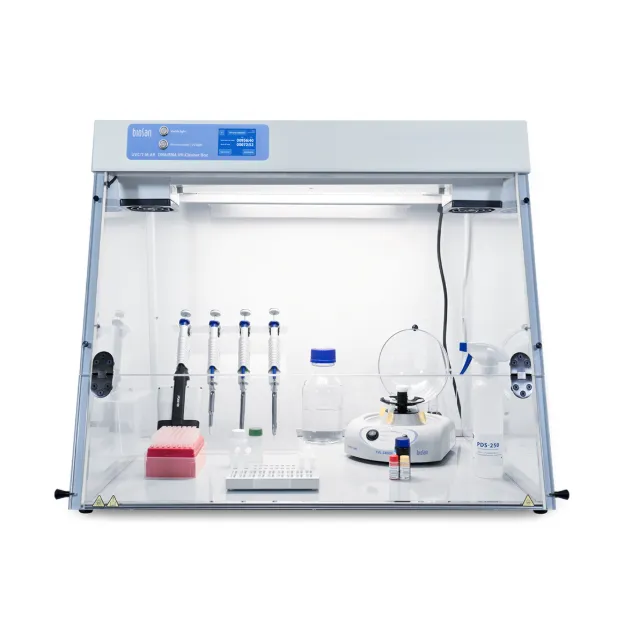

CAMERA FOR PCR WITH RECIRCULATION
Chamber with a steel structure and working platform. Front and side panels are made of Euroglas, 8 mm thick on the front and 4 mm on the sides. Stainless steel back. Sterile and UV-filtered air recirculation system that guarantees aseptic conditions inside the cabin during work. Folding front closure. Integrated socket and input for power cables.

Specifications:
- Sterilization with two UV germicidal lamps (30W) and white light for lighting;
- Recirculation system of sterilized air, at 25m3/h, and filtered by UV;
- Front and side panels in euroglass, with 96% UV absorption;
- Available accessories (not included) such as: a table to support the chamber, a module with drawers, support shelf inside the chamber, and shelf to support the micropipettes.
- Dimensions of the work surface: 121 x 50 cm;
- Exterior dimensions (WxDxH): 125 x 60 x 59 cm.


CHAMBER FOR PCR WITH RECIRCULATION
Structure and work base in steel, front panel in glass with anti UV treatment. Sterile and UV-filtered air recirculation system that guarantees aseptic conditions inside the cabin during work. Folding front closure. Integrated socket and input for power cables.

Specifications:
- Sterilization with UV germicidal lamp (15W) of long duration and white light for illumination;
- UV light timer from 1 min to 24 hours;
- Recirculation system of sterilized air, at 25m3/h, and filtered by UV;
- Available accessories (not included) such as: table to support the chamber, module with drawers, support shelf inside the chamber and shelf to support the micropipettes.
- Dimensions of the work surface: 64.5 x 49 cm;
- Exterior dimensions (WxDxH): 69 x 54 x 55 cm.


CHAMBER FOR PCR WITH RECIRCULATION
Chamber with a steel structure and working platform. Front and side panels made of Plexiglas, 8 mm thick on the front and 4 mm on the sides. Sterile and UV-filtered air recirculation system that guarantees aseptic conditions inside the cabin during work. Folding front closure and power socket inside.

Specifications:
- Sterilization with UV lamp (15W) of long duration and white light for illumination;
- UV light timer from 1 min to 24 hours;
- Plexiglas front and side panels (99% UV absorption);
- Recirculation system of sterilized air, at 25m3/h, and filtered by UV;
- Available accessories (not included) such as: table to support the chamber, module with drawers, support shelf inside the chamber and shelf to support the micropipettes.
- Dimensions of the work surface: 64.5 x 49 cm;
- Exterior dimensions (WxDxH): 70 x 58 x 55.5 cm.


ULTRAVIOLET CAMERA TO DISINFECT SURFACES
Ultraviolet chamber, increasing the effectiveness of surface disinfection, removing DNA, RNA and microorganisms. The chamber with highly focused UV light used to disinfect tools, containers and other research items, eliminating up to 99% of surface contamination. Multiple lamps and chamber with reflective walls provide true 360° UV exposure with no blind spots.

Specifications:
- UV light with a wavelength of 254 nm;
- UV exposure of 600 mJ/cm2 (20 min cycle);
- UV intensity of + 500µW/cm² (camera center);
- 5-20 min UV timer. (5 min Inc.);
- Heating temperature of 55°C;
- Internal dimensions (WxDxH): 21.6 x 25.6 x 31.8 cm;
- External dimensions (WxDxH): 29.2 x 26.7 x 40 cm.
