Gels documentation system

Complete electrophoresis systems with integrated modules for PAGE (polyacrylamide gel electrophoresis), FIE (isoelectric focusing), electroblotting and western blotting performance. Separate modules of: horizontal and vertical electrophoresis gel trays; opaque cellulose acetate cuvettes for detection and quantification of DNA damage and repair in individual cells in genetic toxicity and carcinogenicity tests; blotting units; image acquisition and analysis (gel documentation system, transilluminators); power supplies.


GELS DOCUMENTATION SYSTEM
High-precision and easy-to-use gel documentation system, fully automated with compact darkroom with white light LED included and support for adding different types of LEDs (Epi-UV, Epi-red, Epi-blue, Epi -green). Built-in 16-bit monochrome CCD camera with 5 MP image resolution. Effortlessly automatically captured real-time images with detection of nanogram quantities of DNA and proteins. Free image analysis software (automatic band identification, molecular weight calculation, quantification, colony counting, printing of results) and with automatic updates. A UV filter is included as standard and compatibility with UV, blue or visible light transilluminators and light conversion screens (blue, white) (not included). Documentation system can be upgraded to obtain chemiluminescence and western fluorescence imaging.

Specifications:
- Darkroom with white LED and built-in high resolution CCD camera;
- Standard UV filter and does not include transilluminator or light conversion screen;
- Capture software and analysis software included;
- Dimensions (LxDxH): external 31 x 38 x 69 cm; max viewing area 25 x 30 cm.

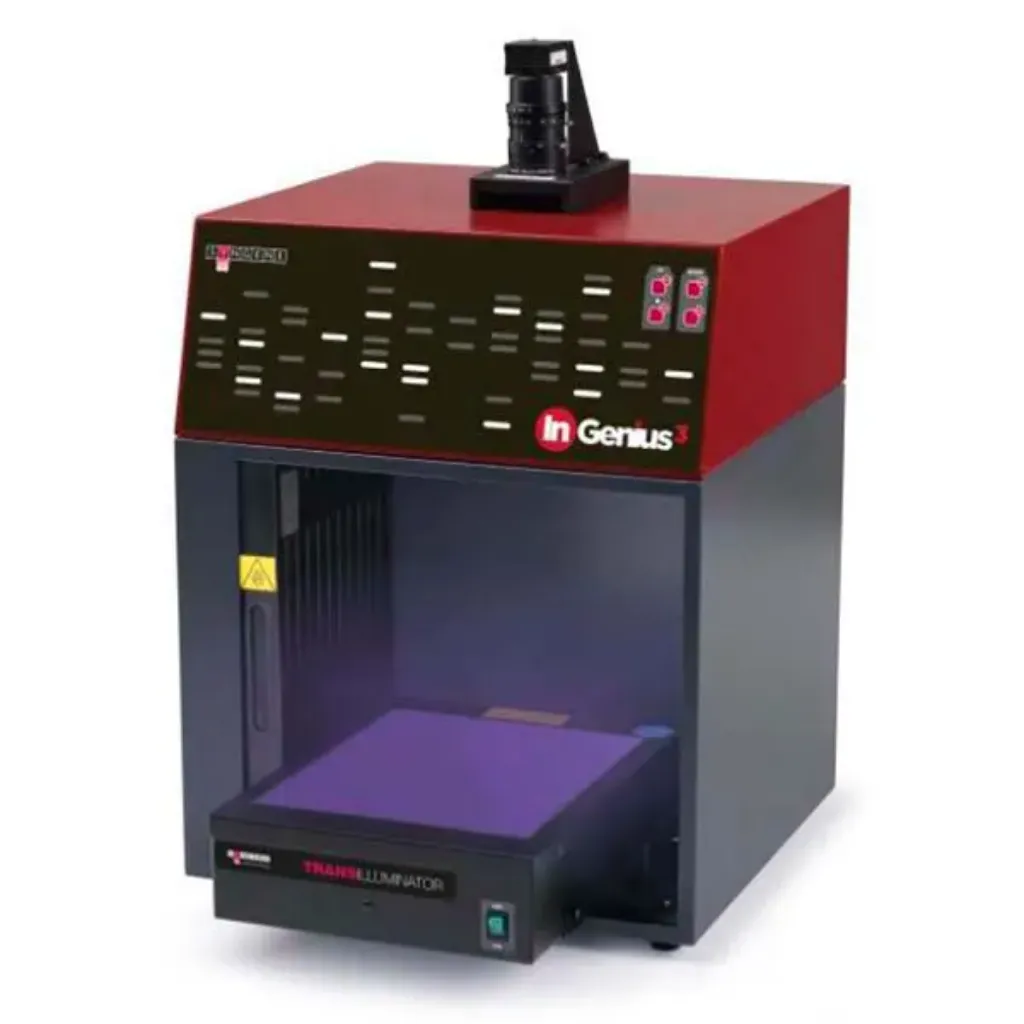

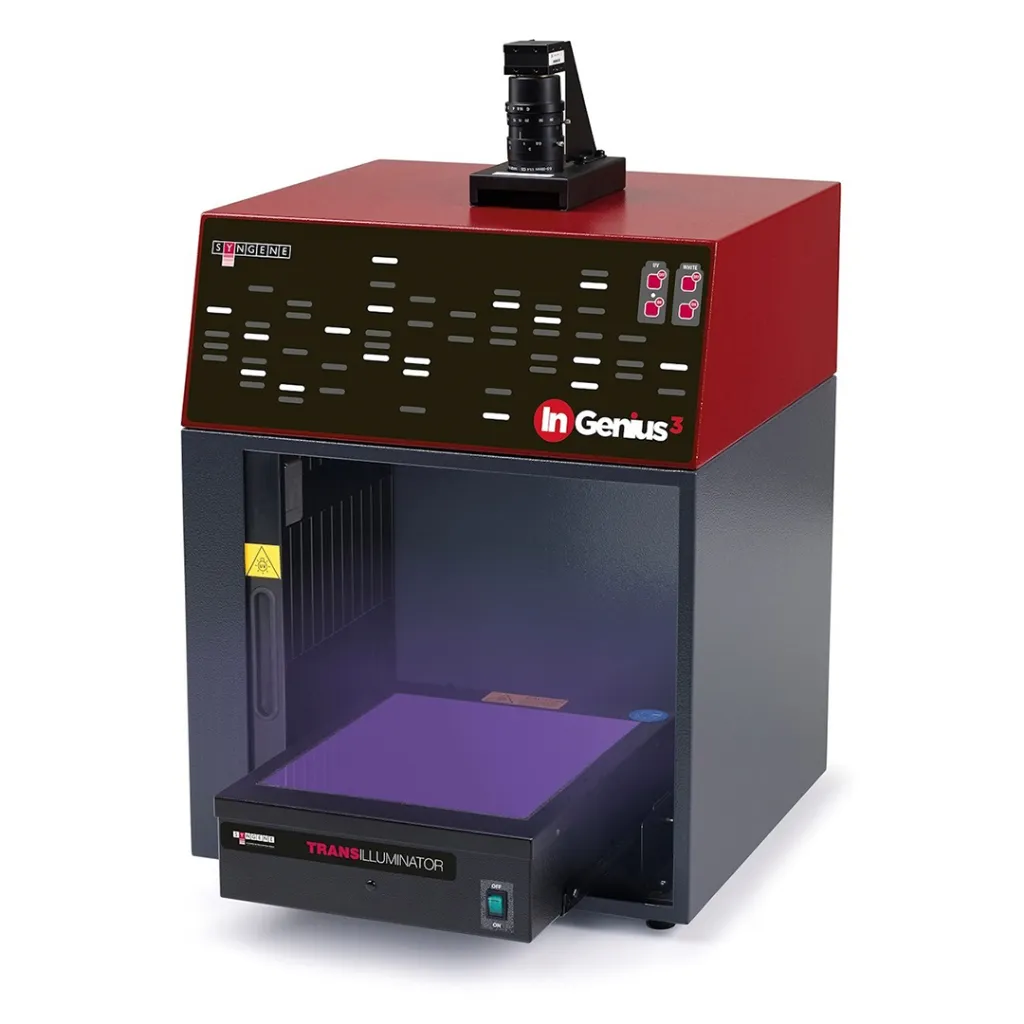

GELS DOCUMENTATION SYSTEM
High resolution compact system with darkroom with integrated transilluminator of 15 x20 cm and built-in 3.2 MP scientific camera, reducing steps in capturing good images to less than 30 seconds of exposure. Visibility for protein stains like Coomassie blue or silver stains and for DNA with ethidium bromide and safe dyes like GelGreen and SYBR safe. System with a 302nm or 365nm wavelength version and 470nm epi-blue lights for use with “safe” dyes that eliminate the need for ethidium bromide. It also includes a tablet for controlling the system and viewing and analyzing the captured image in real time, without the need for a computer connection. They have white epi-lighting systems and a visible compartment at the top to place accessories.

Specifications:
- Darkroom with integrated transilluminator at 302 nm or 365 nm, and 470nm (optional);
- 3.2 MP scientific camera with image capture in less than 30 sec;
- Capture software included and optional TotalLab 1D quantitative analysis software;
- Dimensions (WxDxH): 31 x 38 x 69 cm.


GELS DOCUMENTATION SYSTEM
Easy, compact imaging system that allows replacement of UV and amber (blue light) filters. With built-in Canon digital camera and dark area for photography. It has USB and WIFI for easy image download and printing and high compatibility with 16 x 20 cm transilluminators from other brands, ultraslim or ultrabright as an example, and amber and blue filters. Similar model available with built-in transilluminator.

Specifications:
- Darkroom where the transilluminator is placed (not included);
- Built-in Canon digital camera with 24.2 mega pixels and SD/SDHC memory card;
- Dimensions (WxDxH): 27.5 x 23.8 x 25 cm.
